| Angle | : | 90 Degrees |
| Application | : | Natural Gas~LP Gas~Compressed Air |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Sizes (Custom) | : | 3/4~3/4 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Connection Types (Custom) | : | Press~Press |
| Fitting Type | : | Elbow |
| For Pipe Size | : | 3/4 in |
| Maximum Working Pressure | : | 125~200 PSI |
| NSF Certified | : | No |
| Operating Temperature Rating | : | -40-180 F |
| Package Quantity | : | 1 |
| Packaged Depth | : | 5 in |
| Packaged Height | : | 2 in |
| Packaged Width | : | 2 in |
| Product Family | : | MegaPressG |
| Product Weight | : | 0.503 lbs |
| Reducing | : | No |
| Shipping Weight | : | 0.5 lbs |

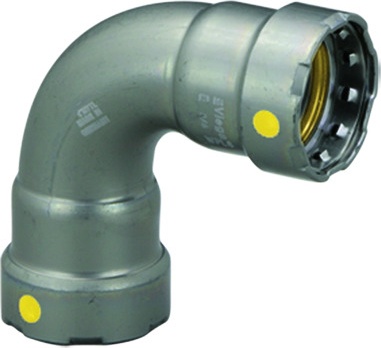

The Viega MegaPressG 90° elbow is a carbon steel press fitting designed to simplify and accelerate the installation of gas and fuel lines. It allows for quick, flameless connections on black iron pipe, eliminating the need for cutting oils, threading, or heavy equipment.Suitable for new construction or retrofit projects, this fitting provides a reliable, permanent connection for professional installers. It is approved for a range of applications including natural gas, LP gas, and compressed air systems.
Smart Connect® Technology: Features Viega's patented Smart Connect® technology to help installers easily identify unpressed connections during pressure testing.Rapid Installation: Creates secure, permanent press connections in less than 7 seconds, significantly reducing installation time compared to threading.Durable Construction: Made from carbon steel with a protective zinc-nickel coating for enhanced corrosion resistance and long service life.System Compatibility: Approved for use with Schedule 5 to Schedule 40 black iron pipe, eliminating the need for special piping.Reliable Sealing: Includes a high-quality HNBR sealing element designed for use with natural gas, LP gas, fuel oil, compressed air, and other hydrocarbons.
