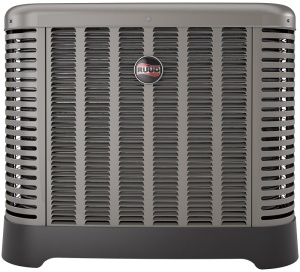

RUUD® RA13NY60AC1NA Endeavor Line Achiever 5.0 Ton Single-Stage A/C Condenser - R-454B, 208/230V, 3 Ph, 13.4 Seer2
RUUD® RA13NY60AC1NA Endeavor Line Achiever 5.0 Ton Single-Stage A/C Condenser - R-454B, 208/230V, 3 Ph, 13.4 Seer2
Manufacturer: RUUD
Brand: RUUD®
Part #: 443708
MPN: RA13NY60AC1NA
CPN:
| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 54,000 BTU/h |
| BTU Cooling Rating | : | 57,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 35.75 in |
| EER2 (Custom) | : | 9.0 |
| EER2 | : | 9.0 |
| ENERGY STAR Certified | : | No |
| Height | : | 45 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 22 A |
| Model Number | : | RA13NY |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 38.38 in |
| Packaged Height | : | 46.5 in |
| Packaged Width | : | 38.38 in |
| Phase | : | 3 ph |
| Product Family | : | Endeavor Line Achiever |
| Product Weight | : | 272 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 (Custom) | : | 13.0 |
| SEER2 | : | 13.4 |
| Shipping Weight | : | 279 lbs |
| Sound Level | : | 76 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage (Custom) | : | 5.0 Ton |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.75 in |
