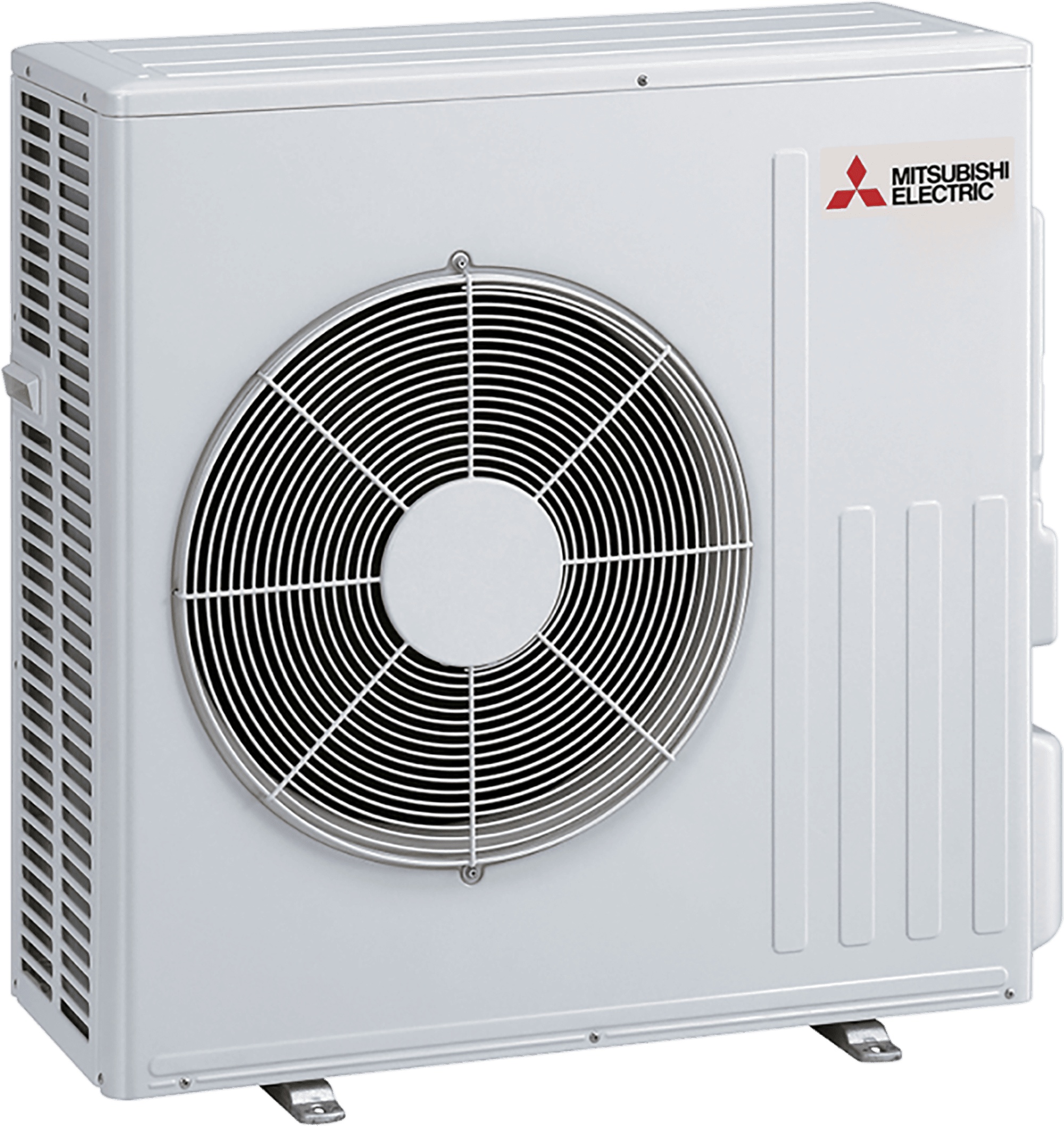

Mitsubishi Electric Trane® MUZ-GX30NL M-Series 2.5 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 19.2 Seer2, 8.9 Hspf2
Mitsubishi Electric Trane® MUZ-GX30NL M-Series 2.5 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 19.2 Seer2, 8.9 Hspf2

Mitsubishi Electric Trane® MUZ-GX30NL M-Series 2.5 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 19.2 Seer2, 8.9 Hspf2

Mitsubishi Electric Trane® MUZ-GX30NL M-Series 2.5 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 19.2 Seer2, 8.9 Hspf2

Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 441695
MPN: MUZ-GX30NL
CPN:
BTU Cooling Rating (Custom)      :      30,000 BTU/h
BTU Cooling Rating      :      30,600 BTU/h
BTU Heating Rating (Custom)      :      30,000 BTU/h
BTU Heating Rating      :      32,600 BTU/h
Compressor Type      :      Rotary
Depth      :      13 in
EER (Custom)      :      9.0
EER2 (Custom)      :      9.0
EER2      :      9.05
EER      :      9.05
ENERGY STAR Certified      :      Yes
HSPF (Custom)      :      8.0
HSPF2 (Custom)      :      8.0
HSPF2      :      8.9
HSPF      :      8.9
Height      :      34.625 in
Liquid Line Size      :      1/4 in
Max Breaker Size      :      25 A
Model Number      :      MUZ-GX
Number of Stages      :      Inverter
Number of Zones      :      1
Packaged Depth      :      16.75 in
Packaged Height      :      40.75 in
Packaged Width      :      38.75 in
Phase      :      1 ph
Product Family      :      M-Series
Product Type      :      Heat Pump
Product Weight      :      116 lbs
Refrigerant Type      :      R-454B
SEER (Custom)      :      19.0
SEER2 (Custom)      :      19.0
SEER2      :      19.2
SEER      :      19.2
Shipping Weight      :      135 lbs
Sound Level      :      57 dB(A)
Suction Line Size      :      5/8 in
Tonnage (Custom)      :      2.5 Ton
Tonnage      :      2.5 Ton
Voltage Rating      :      208/230 V
Width      :      33.063 in
