| Amperage Rating | : | 0.55~0.66~0.75 A |
| Body Material | : | Iron |
| Depth | : | 6.5 in |
| Discharge Connection Size | : | 1/2 in |
| Flow Rate | : | 0~1,020 GPH |
| Height | : | 6.5 in |
| Inlet Connection Size | : | 1/2 in |
| Maximum Fluid Temperature | : | 230 F |
| Maximum Head | : | 19 ft |
| Maximum Working Pressure | : | 145 PSI |
| Motor HP | : | 1/25 HP |
| Package Quantity | : | 1 |
| Packaged Depth | : | 7.5 in |
| Packaged Height | : | 6.6 in |
| Packaged Width | : | 6.2 in |
| Phase | : | 1 ph |

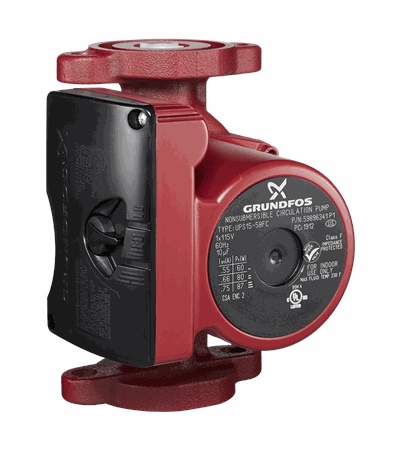

| Product Family | : | Small Stator UP |
| Product Type | : | Circulator Pump |
| Product Weight | : | 6.26 lbs |
| Shipping Weight | : | 6.9 lbs |
| Voltage Rating | : | 115 V |
| Watts | : | 87 W |
| Width | : | 5.25 in |
